Max Platform Height: 9.2 Meters
Max Working Height: 11.2 Meters
Loading Capacity: 200kg
Platform Size: 620*870mm
Power: Rechargeable Battery
Suitable for 2 Workers Use
Automatic Walking Mode
Certificate: CE,ISO,ROHS,Saber
| Model | AMWP11.2-8100 |
| Max. Platform Height | 9.2m |
| Max. Working Height | 11.2m |
| Max. Horizontal Reach | 3m |
| Up and Over Height | 7.89m |
| guardrail height | 1.1m |
| Overall Machine Size | 2.53*1*1.99m |
| Platform Dimension | 0.62*0.87m |
| Ground Clearance(Stowed) | 60mm |
| Ground Clearance(Raised) | 19mm |
| Wheelbase | 1.22m |
| Loading capacity | 200kg |
| Occupants | 2 |
| Turning Radius(Inside/Outside) | 0.23/1.65m |
| Turret Rotation | 345° |
| Jib Movement | 70°/-60° |
| Travel Speed(Stowed) | 4.5km/h |
| Travel Speed(Raised) | 0.5km/h |
| Up/Down Speed | 70/50s |
| Max. Working Slope | X-2.5°，Y-2.5° |

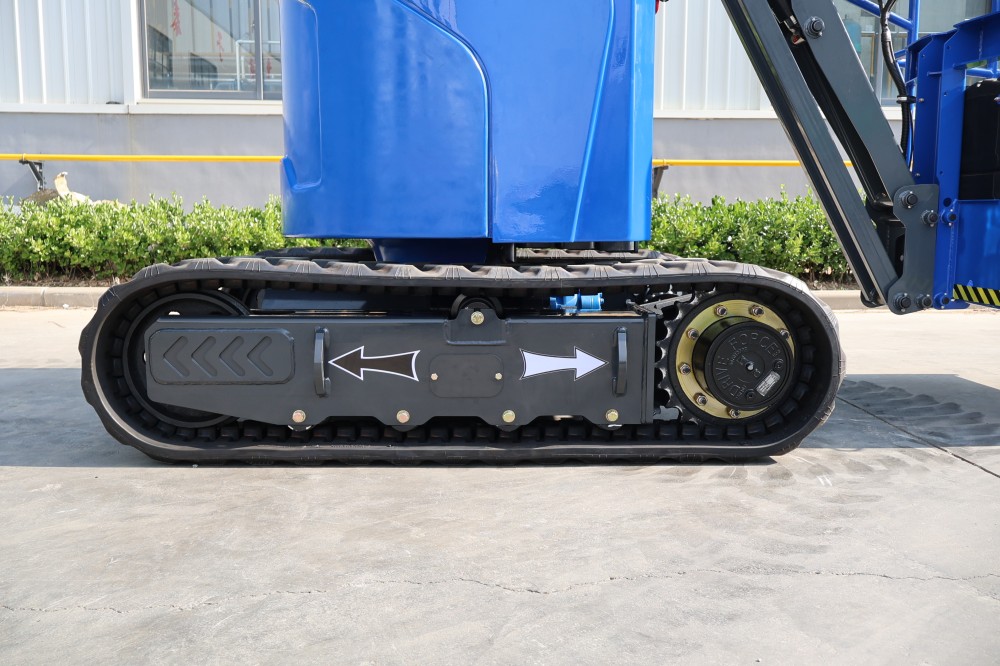

| Tyres | Ф381*127mm |

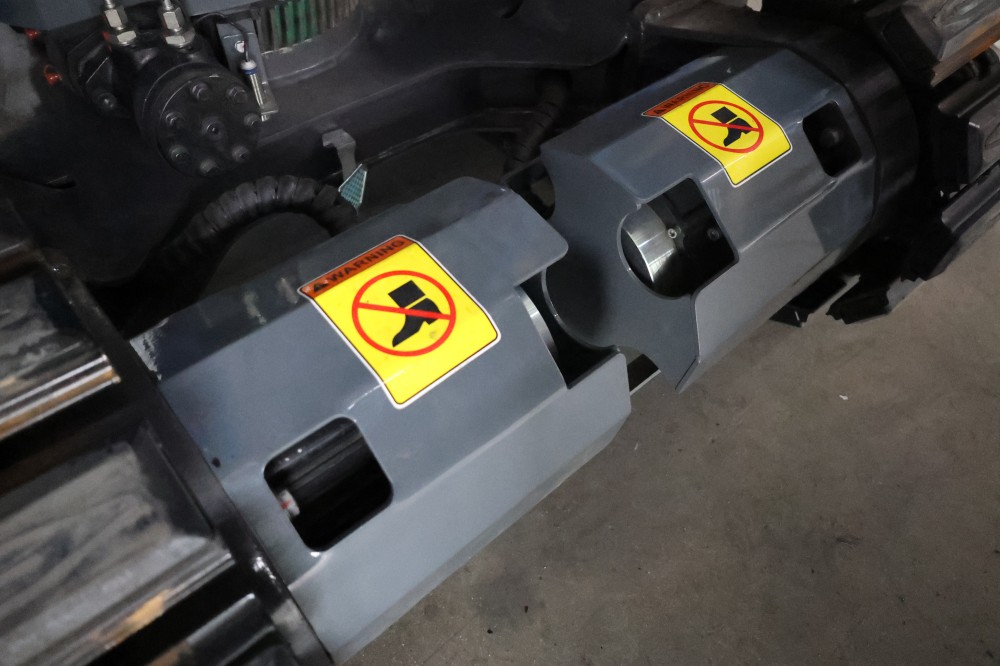

| Driving Motor | 24V/1.5kW |
| Lifting Motor | 24V/3kW |
| Battery | 24V/240Ah |
| Charger | 24V/30A |
| Weight | 2950kg |
